Designer floor-standing fan coil units Silent series
Хотите купить или у вас есть вопросы?

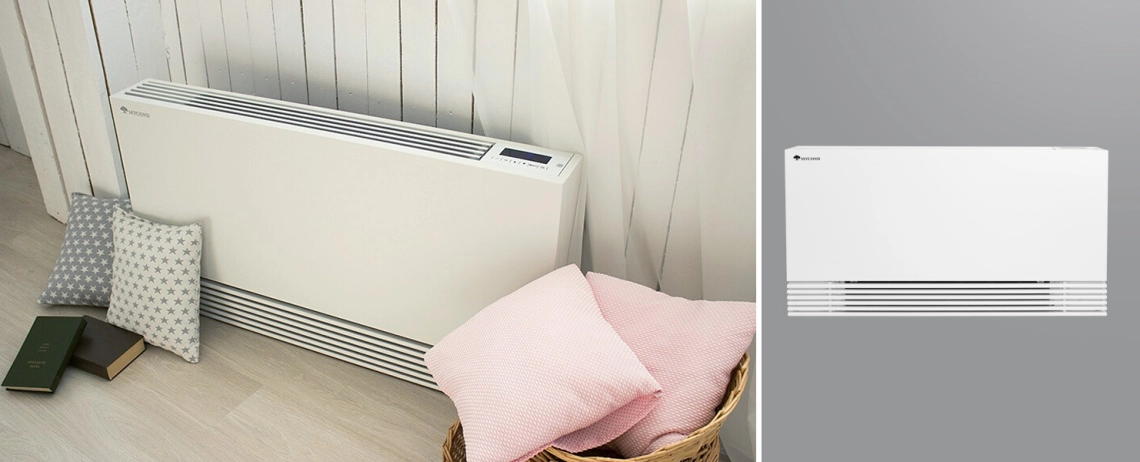

Cooling, heating dehumidification and cleaning with one unit only. An ultra-slim fan coil with BLDC motor technology, it modulates the fan speed according to the user's needs. This type of fan provides low noise with high airflow compared to a conventional fan motor.
The ultra-slim design with BLDC motor makes it the best choice for use in bedrooms. Thanks to the BLDC technology, the fan speed is infinitely adjustable to meet the needs of the user.
This model is designed for low temperature heating.
- Filters are easily removed from the housing, which makes them easy to clean during maintenance.
- Compact dimensions allow you to place the fan coil in any place without compromising the space of the room.

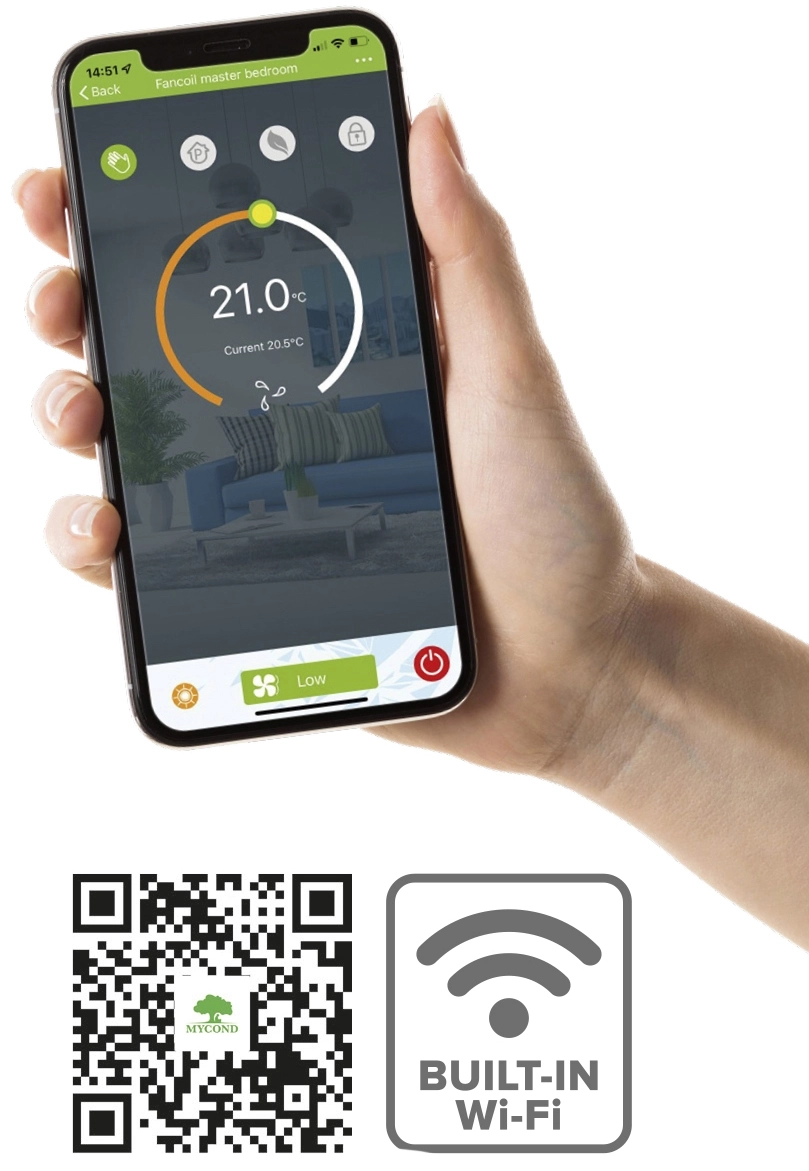

- The fan coil unit can be controlled using a buil-in touch-control panel with LED-display or via Wi-Fi.
Key advantages:
- Ultra-slim body (only 134mm deep)
- Artwork design
- Low noise level
- Wall-mounted installation

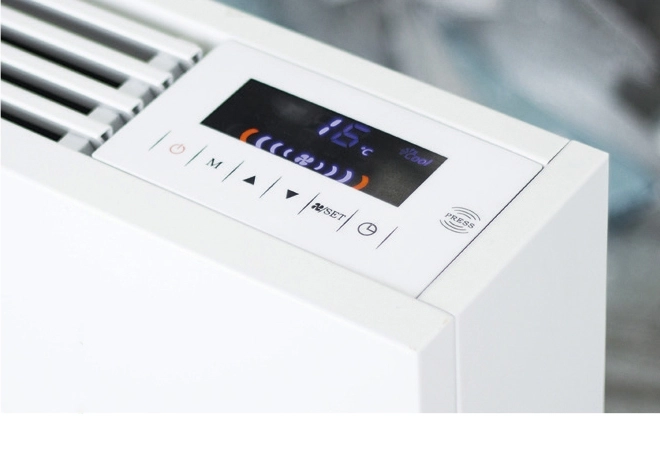

- Touch-control panel with a LED display
- Integrated 3-way valve
- BLDC motor
| Specifications | Units | MCFS-075T2 Silent |
MCFS-150T2 Silent |
MCFS-220T2 Silent |
MCFS-300T2 Silent |
| Total cooling capacity1 | kW | 0,75 | 1,5 | 2,2 | 3,1 |
| Heating capacity2 | kW | 0,99 | 2 | 2,8 | 4,2 |
| Heating capacity3 | kW | 1,55 | 3,1 | 4,6 | 6,3 |
| Connection diameter | inch | G1/2 | G1/2 | G1/2 | G1/2 |
| Maximum air flow rate | m3/h | 160 | 320 | 460 | 580 |
| Minimum air flow rate | m3/h | 50 | 150 | 200 | 300 |
| Maximum operating current | A | 0,12 | 0,16 | 0,21 | 0,24 |
| Power input | W | 14 | 23 | 37 | 33 |
| Maximum noise level4 | dB(A) | 39 | 40 | 42 | 42,1 |
| Minimum noise level4 | dB(A) | 19,8 | 18,3 | 19,1 | 21 |
| Net weight | kg | 16 | 22 | 28 | 34 |
The specifications refer to the following conditions:
1 – Cooling: inlet/outlet water temperature +7/+12 °C; indoor temperature +27/+19 °C
2 – Heating: inlet water temperature +50 °С, with water flow rate corresponding to the cooling mode; indoor temperature +20 °C
3 – Heating: inlet/outlet water temperature +70/60 °C; indoor temperature +20 °C
4 – Noise level means sound pressure level as per EN 12102:2008 and ISO 3745:2012

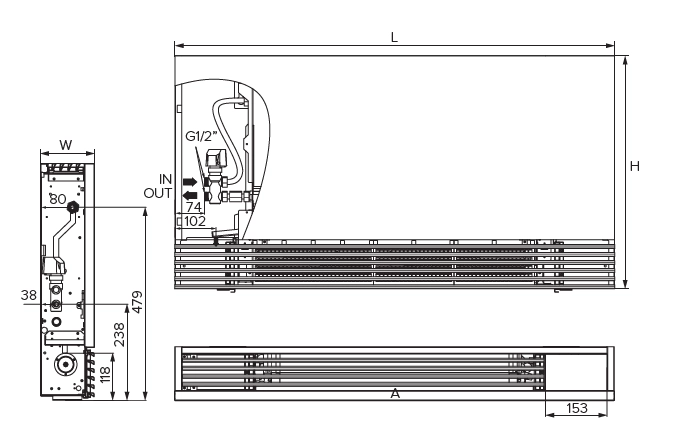

Dimensions
| Model | Units | L | H | W |
| MCFS - 075T2 | mm | 694 | 588 | 134 |
| MCFS - 150T2 | mm | 894 | 588 | 134 |
| MCFS - 220T2 | mm | 1094 | 588 | 134 |
| MCFS - 300T2 | mm | 1294 | 588 | 134 |
* Available as an option
